| محل منبع: | چین |
|---|---|
| نام تجاری: | VEGASHINE / OEM |
| شماره مدل: | VGS-BF1404003HDS-6305 |
| مقدار حداقل تعداد سفارش: | 1 واحد |
| جزئیات بسته بندی: | کارتن |
| زمان تحویل: | 3 تا 10 روز کاری |
| شرایط پرداخت: | T/T، Western Union، MoneyGram |
| قابلیت ارائه: | 1000 واحد در ماه |
| شاسی بلند: | آلیاژ آلومینیوم | بعد: | 178 × 126 × 55 میلی متر |
|---|---|---|---|
| رنگ شاسی: | مشکی | CPU: | پردازنده Celeron® 6305 |
| RAM: | 2×DDR4 | گیگابیت LAN: | 4*اینتل i225/i226 LAN |
Industrial computer fanless mini pc Celeron® 6305 4 * 2.5G LAN firewall PC appliance soft router support pFsense
Celeron® 6305 4*2.5G LAN Firewall computer pFsense industrial mini pc
Key Features
Aluminium alloy chassis
Intel® Celeron® 6305 Processor dual-core dual-thread, main frequency: 1.8GHz
2×DDR4 260PIN SO-DIMM slots, support DDR4 3200, single stick max 32GB
1×SATA interface, 1×M.2_2280 interface
1×MINI PCI-E interface
1×RJ45 COM port
1×SIM card slot
DC 12V-4A, 5.5×2.5mm barrel jack
Dimension: 178 × 126 × 55 mm
Specifications
|
Model No. |
VGS-BF1404003HDS-6305 |
|---|---|
| Chassis Color | Black |
| Material | aluminium alloy chassis |
| Installation | Desktop |
| CPU | Intel® Celeron® 6305 Processor dual-core dual-thread, main frequency: 1.8GHz |
| Memory | 2×DDR4 260PIN SO-DIMM slots, support DDR4 3200, single stick max 32GB |
| Storage | 1×SATA interface, 1×M.2_2280 interface |
| Expansion Bus | 1×MINI PCI-E interface |
| Network | Onboard 4*INTEL i225/i226 |

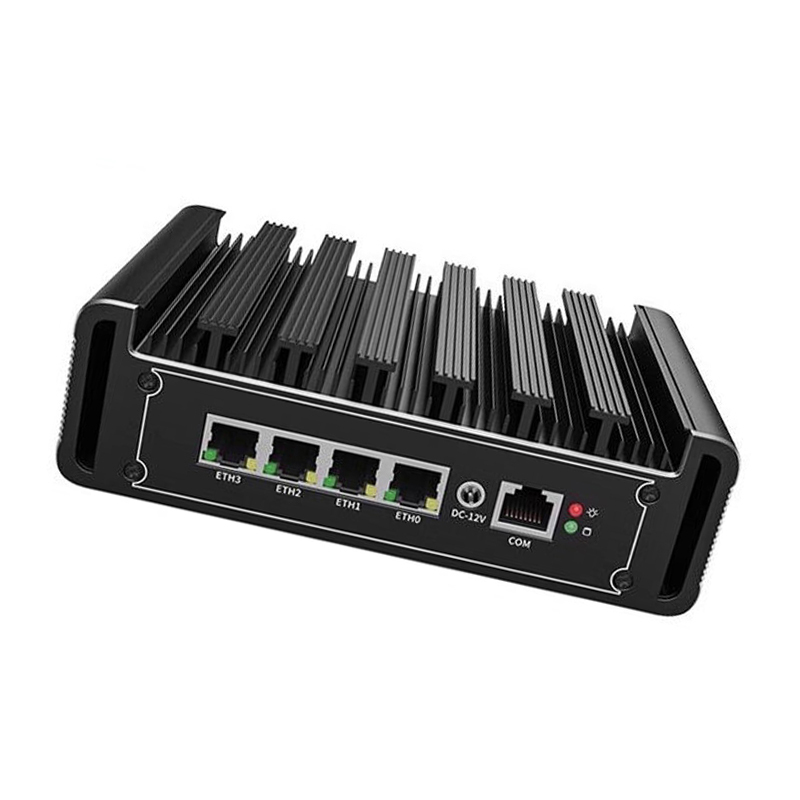

| Front Panel I/O |
4×2.5G Ethernet ports, 1×RJ45 COM port, 1×DC power interface, 1×LED indicator |
| 6305 Rear Panel I/O |

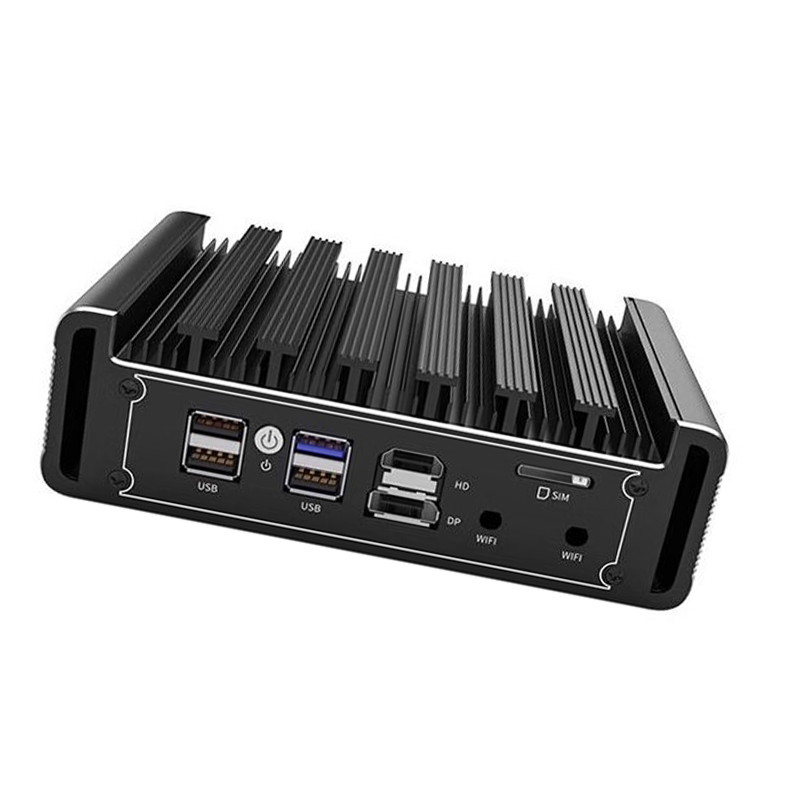

1×USB3.0 , 3×USB2.0 1×DP+HD interface 1×switch button, 1×SIM card slot |
| Onboard I/O | 1×SATA power interface, 1×CPU fan power socket, 1×7pin SATA |
| Power Supply | DC_IN 12V |
| Operating Temperature | -20~55 ℃ |
| Ambient Humidity | 5~90% relative humidity, non-condensing |

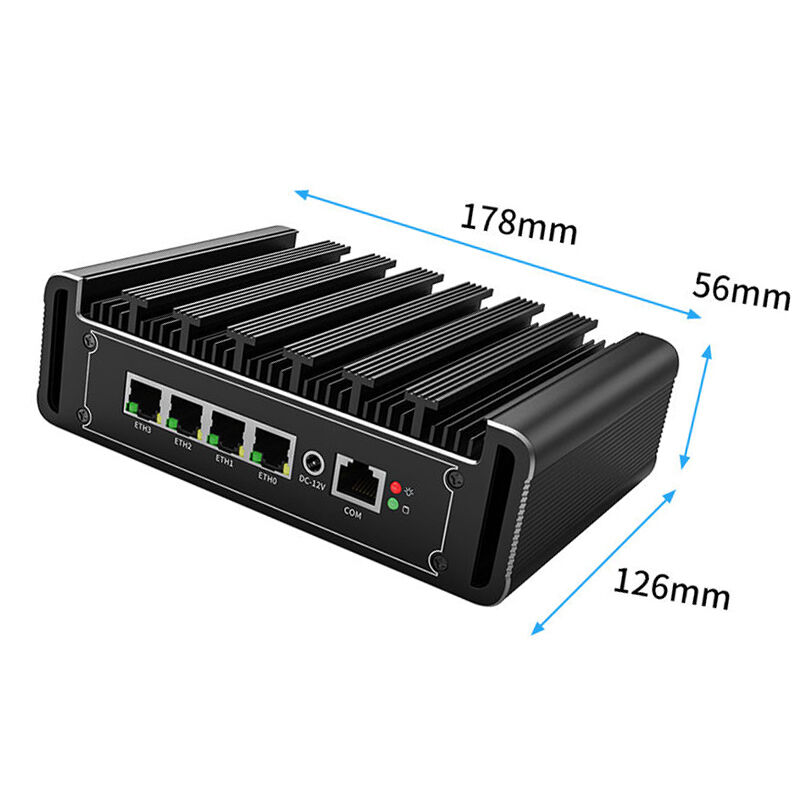

| Dimensions | 178 × 126 × 55 mm |
| Operating Temperature |
0 ~ +50℃(with commercial HDD), -20℃~ +50℃(with industrial SSD), with air flow |
| Humidity | 5 ~ 90% relative humidity, non-condensing |
| Operate System | Support Pfsense ,Linux, iKuai, LEDE, Openwrt, Panabit, Smart6, Win 7/8/10 etc. |
Our service:
1.We can provideOEM/ODMservices .
2.We can sell one sample for your test.
3.High-quality product and competitive price.
4.1 years Warranty
